Electric Fuel Pump
Electric fuel pump core · model E2068
Ten core components fully disassembled: our materials and processes versus ordinary competitors
Specifications · test data · laboratory and in-house manufacturing capability
www.fobautoparts.com
SECTION 01
Product Positioning
This is an electric fuel pump for the fuel supply system of gasoline electronic fuel injection (EFI) vehicles, covering a wide range of models and engine displacements. We do not compete on headline specifications—we concentrate cost on the ten core components that determine service life and failure rate, from copper wire purity and commutator material to wear-resistant impeller compound and housing anti-corrosion treatment.
Core components upgraded

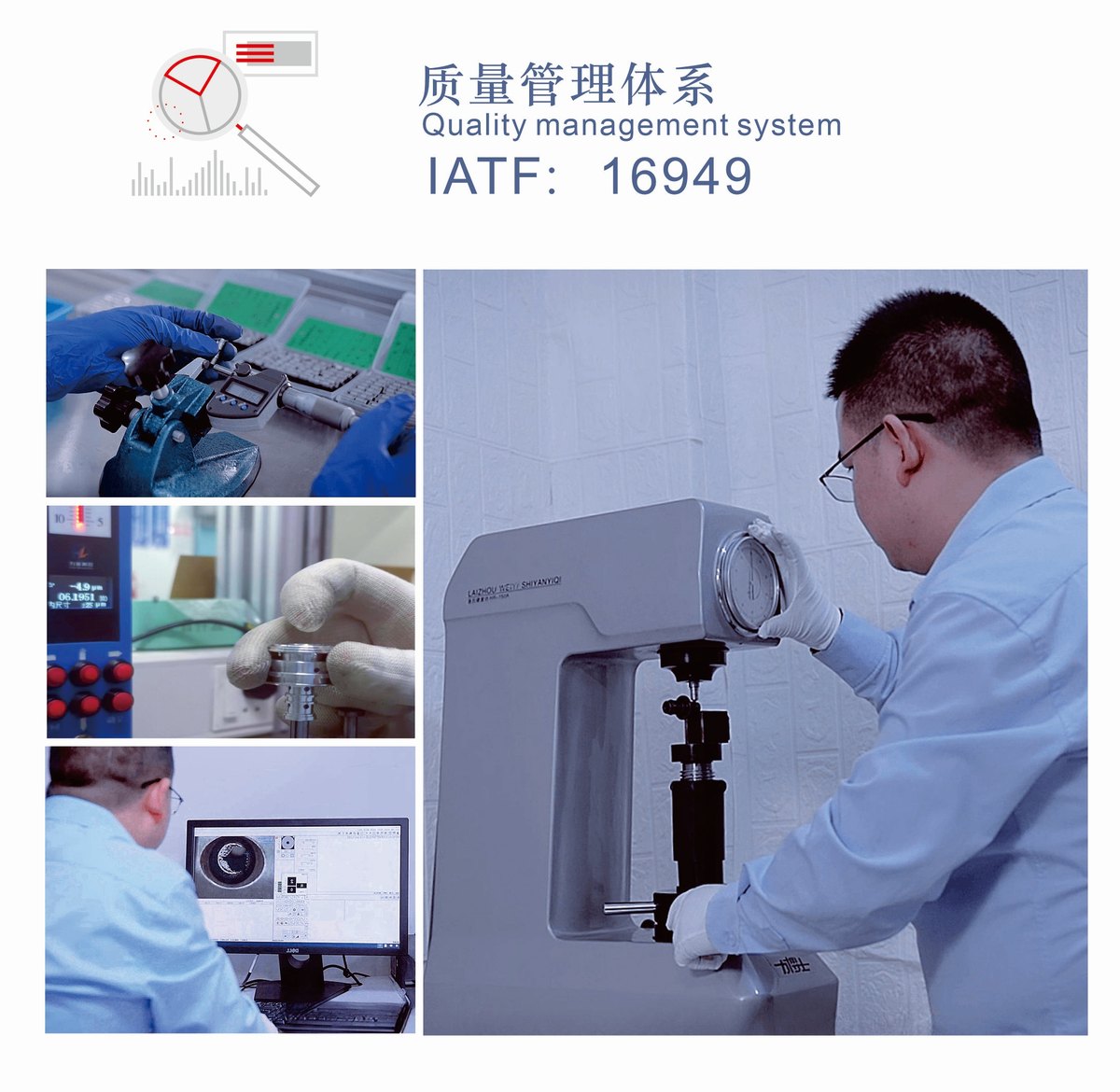

Laboratory test capabilities
In-house production stages
Housing salt-spray protection
OE-grade positioning
Copper purity ≥99.95%, graphite/silver-copper alloy commutators, branded wear-resistant PPS impeller and brush holder, and 72-hour salt-spray protection.
More competitive pricing
The material grade is positioned near OE quality while remaining more competitive than original OE brands.
Help your brand grow
Stable quality reduces after-sales disputes and supports repeat business.
Fitment & Selection
| Item | Description |
|---|---|
| Applicable vehicles | Gasoline EFI fuel supply systems; suitable for ethanol-blended gasoline (E10 / E85). |
| How to select | Select against the specifications corresponding to existing OE numbers. Other specifications can be matched on request. |
| Documents available | Product datasheet, outline and mounting dimensions, and vehicle application cross-reference list. |
SECTION 02
Product Appearance
The finished electric fuel pump core is shown below. Pump bodies are plain, without third-party brand, model or lettering, for appearance and structure reference.
SECTION 03 · E2068
Specifications & Test Report
The following technical requirements and test data are reproduced from the supplied E2068 product document for selection, installation and incoming-goods verification.
1. General Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Product name | Electric fuel pump core | Model | E2068 |
| Commutator | Carbon | Working medium | Vehicle gasoline, ethanol-blended gasoline |
| Service life | ≥3000 h (carbon commutator) | Operating voltage | DC 8–14.8 V |
| Operating temperature | −40°C to +80°C | Storage temperature | −30°C to +70°C |
| Appearance | Positive/negative electrode markings clear; no scratches, shrinkage or corrosion. | ||
2. Outline & Mounting Dimensions (mm)
| No. | Item | Dimension |
|---|---|---|
| 1 | Overall length of pump core | 115 ± 0.5 |
| 2 | Outlet port outside diameter | Φ9 (−0.2, +0.2) |
| 3 | Pump body outside diameter | Φ38 ± 0.2 |
| 4 | Inlet port root outside diameter | Φ11.2 (0, −0.2) |
| 5 | Filter mounting pin outside diameter | Φ3.8 (0, +0.2) |
3–6. Operating Performance, Flow & Current, and Service Life
| Test item | Requirement / result |
|---|---|
| Check valve at 100 ± 5 kPa | Reverse leakage ≤10 mL/h |
| Operating noise | ≤50 dB |
| Working pressure | 0.4–0.6 MPa; peak pressure 1.1 MPa |
| 0.4 MPa · DC 12 V · D40 | Flow ≥115 L/h; current ≤6.5 A |
| 0.5 MPa · DC 12 V · D40 | Flow ≥100 L/h; current ≤7 A |
| 0.6 MPa · DC 12 V · D40 | Flow ≥85 L/h; current ≤7.5 A |
| Service life comparison | Copper commutator >2000 h / 80,000 km; carbon commutator >3000 h / 120,000 km, converted at 40 km/h. |
Test conclusion in the source document: at all three pressure points, measured flow was above the standard lower limit and measured current below the standard upper limit. PASS.
SECTION 04–05
Ten Core Components & Part-by-Part Comparison
The PDF compares the following ten component groups by material, process and expected customer benefit.
| No. | Component | Our fuel pump core | Ordinary competitors |
|---|---|---|---|
| 01 | Copper wire | Pure copper ≥99.95%, high-temperature enamel-coated wire | Low-temperature-grade copper or reduced cross-section |
| 02 | Commutator | Carbon graphite / silver-copper alloy commutator | Ordinary pure copper, lower wear resistance |
| 03 | Impeller | Wear-resistant engineering plastic / branded Syensqo PPS | Ordinary recycled material |
| 04 | Carbon brush | Electrographitic carbon brush, fuel-resistant and quiet | Hard ordinary graphite, more sparking and wear |
| 05 | Brush holder | Wear-resistant engineering plastic / branded PPS | Recycled PPS or temperature-unstable material |
| 06 | Outlet cover | Fuel-resistant copolymer POM + GF25% | Recycled POM or temperature-unstable material |
| 07 | Rotor / armature | Baosteel shaft Gr15 and silicon-steel laminations | Unstable motor performance and heat build-up |
| 08 | Magnet segments | High-performance magnet segments | Unstable motor performance and heat build-up |
| 09 | Pump chamber / inlet cover | Hard aluminium alloy, hard anodising and wear-resistant bearing | Low precision and poor wear resistance |
| 10 | Pump housing | Plated surface, 72-hour salt spray and precision machining | Uncontrolled corrosion protection and low precision |
SECTION 06–08
Laboratory, Manufacturing Capability & Cooperation

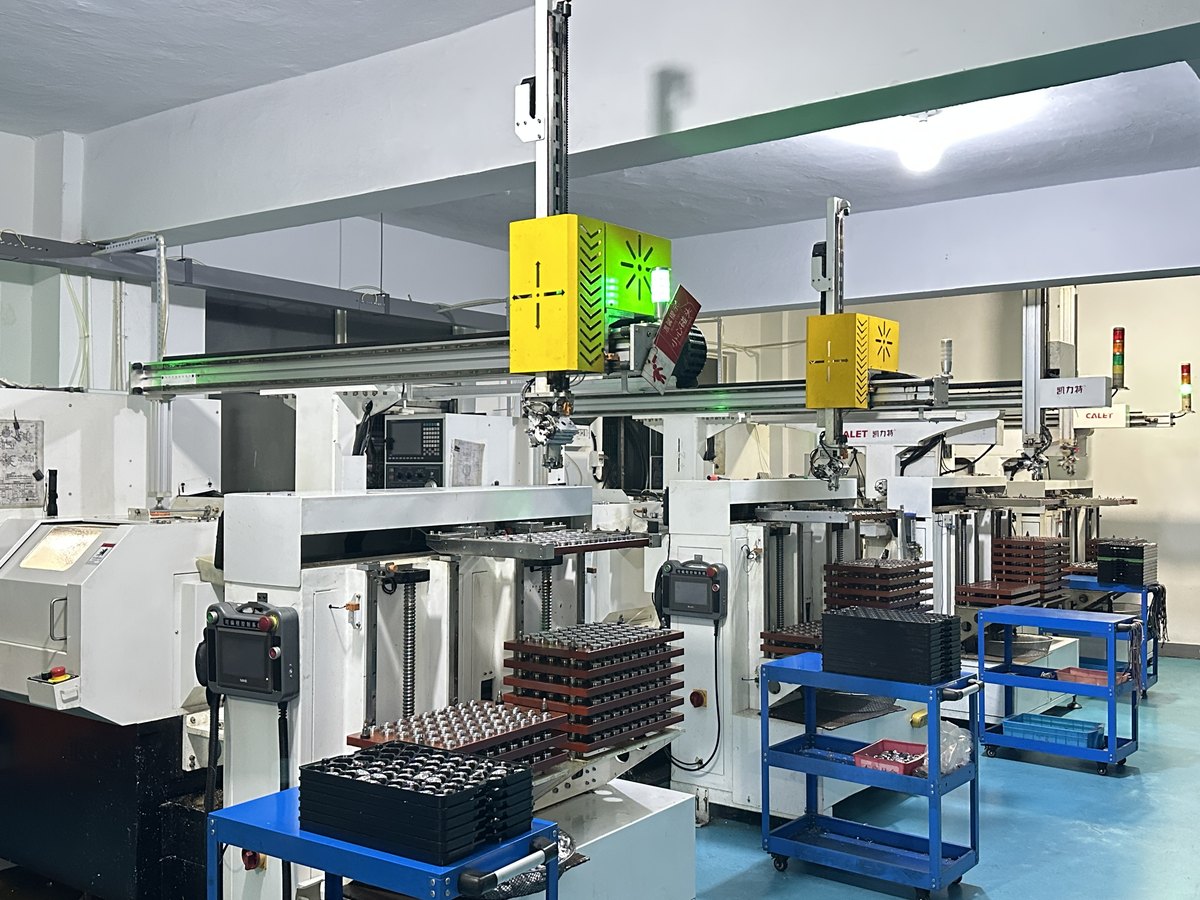

From precision machining and armature winding to assembly, finished-goods inspection and warehouse management, key processes are carried out in-house with separate semi-finished and finished-goods areas and traceable batches. Sample approval, custom packaging and volume-order scheduling are supported.
Need the E2068 datasheet or fitment review?
Send your OE number, required dimensions, target quantity and packaging requirements.
