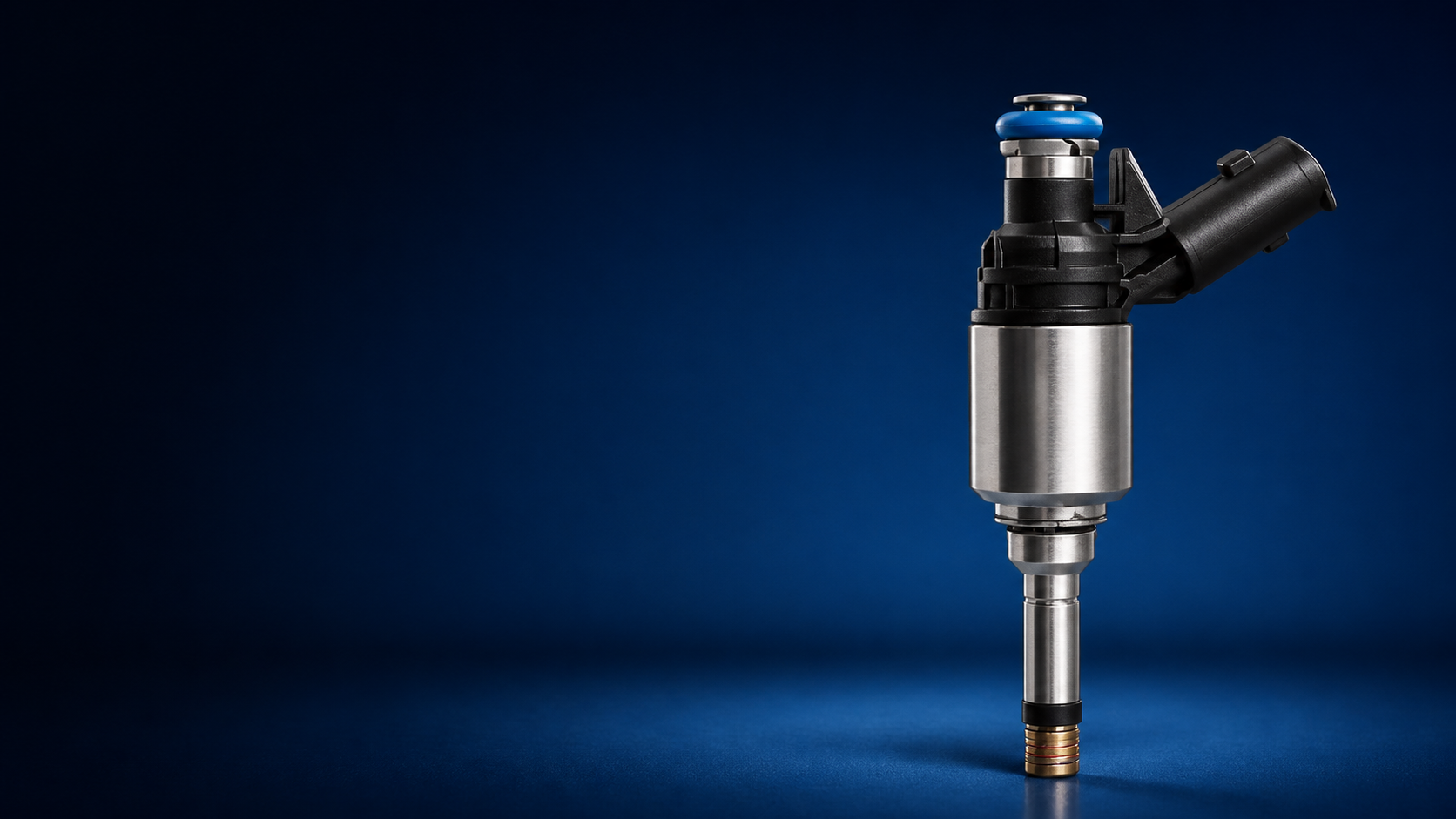

GDI Fuel Injector Repair Kits: Filters, Seals and a Practical Service Guide
A GDI injector repair kit is not a universal pack of small parts. Filter screens, O-rings, plastic spacers and other sealing or support pieces must match the injector design and the intended service procedure. FOB Auto Parts helps buyers identify, source and develop repair-kit configurations from a part number, OE reference, physical sample or controlled drawing.
What can be included in a GDI injector repair kit?
Depending on the specific injector design and service scope, a repair kit can include a fine filter screen, O-rings or other elastomer seals, plastic spacer or support pieces, and additional small sealing or retaining components. These parts should be selected as a matched kit for the identified injector. A similar-looking ring or filter is not enough to establish interchangeability.
Filter screens
Fine filter screens can help protect internal fuel passages from contamination. Screen design, dimensions and installation position must match the injector construction.
O-rings and seals
Sealing elements need the correct size and material for their interface and operating environment. Replace damaged, flattened or chemically affected seals with the specified kit components.
Plastic spacers and supports
Plastic pieces may locate, support or separate components during assembly. Their geometry matters, so confirm the exact kit reference rather than selecting by color or appearance.
How to repair a GDI fuel injector: a controlled process
GDI fuel systems operate at high pressure. The following is an educational workflow for trained technicians, built from the technical guidance reviewed through Bright Data from HELLA, Delphi and GB Reman. It is not a substitute for the target vehicle manufacturer's current repair instructions, required tools, torque values, diagnostic criteria or safety procedure.
Do not treat a repair kit as a diagnosis. Verify the fault path using the vehicle procedure, including relevant stored faults, fuel-system behavior, electrical checks and related engine conditions. Delphi notes that injector failure symptoms can overlap with contamination, pressure and broader system problems.
Follow the vehicle procedure to isolate power and relieve pressure before opening any high-pressure fuel connection. HELLA's high-pressure fuel-system guidance warns that residual pressure can remain and specifies that work must be performed only by trained personnel using appropriate protective and fuel-handling measures.
Prevent dirt from entering exposed fuel passages. Record the injector marking and inspect the removed injector, seal areas and surrounding interfaces. Delphi identifies contamination as a significant injector risk, so parts and openings should be protected throughout the job.
Use the repair-kit components specified for the exact injector and repair operation. For injectors using a combustion seal, GB Reman describes a dedicated sequence of removing the old seal, cleaning the groove, fitting the new seal with the correct installer and sizing it with the prescribed tool. Do not substitute dimensions, tools or installation methods based on appearance.
Refit the injector and fuel-system connections to the vehicle manufacturer's specification. Before return to service, complete the required leak inspection and functional checks. Investigate any fuel smell, seepage, warning lamp or drivability issue rather than assuming a new seal has resolved the underlying condition.
Why kit identification matters
One OE reference, one catalog number, a clear injector photo and key dimensions make an inquiry much more actionable. They reduce the risk of mixing components across visually similar injector families.
What FOB Auto Parts can support
We can coordinate sourcing, sampling, private-label discussion and quality-check requirements for GDI injector repair-kit projects. Final suitability is determined by the confirmed part reference, sample or drawing and the buyer validation process.
01. GDI Injector Repair Kit
02. GDI Injector Repair Kit
03. GDI Injector Repair Kit
04. GDI Injector Repair Kit
05. GDI Injector Repair Kit
06. GDI Injector Repair Kit
07. GDI Injector Repair Kit
08. GDI Injector Repair Kit
09. GDI Injector Repair Kit
10. GDI Injector Repair Kit
11. GDI Injector Repair Kit
12. GDI Injector Repair Kit
13. GDI Injector Repair Kit
14. GDI Injector Repair Kit
15. GDI Injector Repair Kit
16. GDI Injector Repair Kit
17. GDI Injector Repair Kit
18. GDI Injector Repair Kit
19. GDI Injector Repair Kit
20. GDI Injector Repair Kit
21. GDI Injector Repair Kit
22. GDI Injector Repair Kit
23. GDI Injector Repair Kit
24. GDI Injector Repair Kit
25. GDI Injector Repair Kit
26. GDI Injector Repair Kit
27. GDI Injector Repair Kit
What to send for a GDI repair-kit request
FOB Auto Parts can work from the 27 catalogued references above or from your own project requirements. For a controlled sourcing discussion, provide the following information.
Part identity
Send the injector OE number, catalog reference, clear photos and any markings visible on the removed part.
Required kit scope
State whether you need filter screens, O-rings, plastic spacers or a defined multi-piece kit. Include an approved sample or drawing when available.
Project requirements
Share quantity, destination market, packaging or labeling needs, requested sample process and the checks that matter to your project.
Validation plan
Define the identification, dimensional, material or functional checks your team requires before scale-up.
Request a sourcing discussion: email inquiry@fobautoparts.com or use our contact page.
GDI injector repair-kit questions
Do the listed OE references confirm fitment?
No. They are copied from the supplied catalog as reference numbers for identification. Confirm fitment against the exact injector, vehicle documentation and your technical validation process.
Does every GDI repair kit contain the same parts?
No. The contents and dimensions can vary by injector design and kit reference. Confirm the required component list, part appearance and specification for the target project.
Can an injector be repaired without diagnosis?
No. A repair kit addresses selected service components; it does not establish the cause of an injector or engine fault. Use the applicable diagnostic and service procedure before repair.
Can FOB Auto Parts provide a custom kit?
We can coordinate sourcing and development discussions based on a confirmed reference, physical sample or drawing. Availability, configuration and suitability are confirmed for the individual project.
